Metalfab Material Handling Systems, LLC, an industry-leading designer and manufacturer of dry solids processing equipment, integrated systems and subsystems, specialty fabrication and related services, has announced availability of their new Spin Loader.
Read more here.
Metalfab Material Handling Systems, LLC, an industry-leading designer and manufacturer of dry solids processing equipment, integrated systems and subsystems, specialty fabrication and related services, has announced availability of their new Bag Dump Hopper.

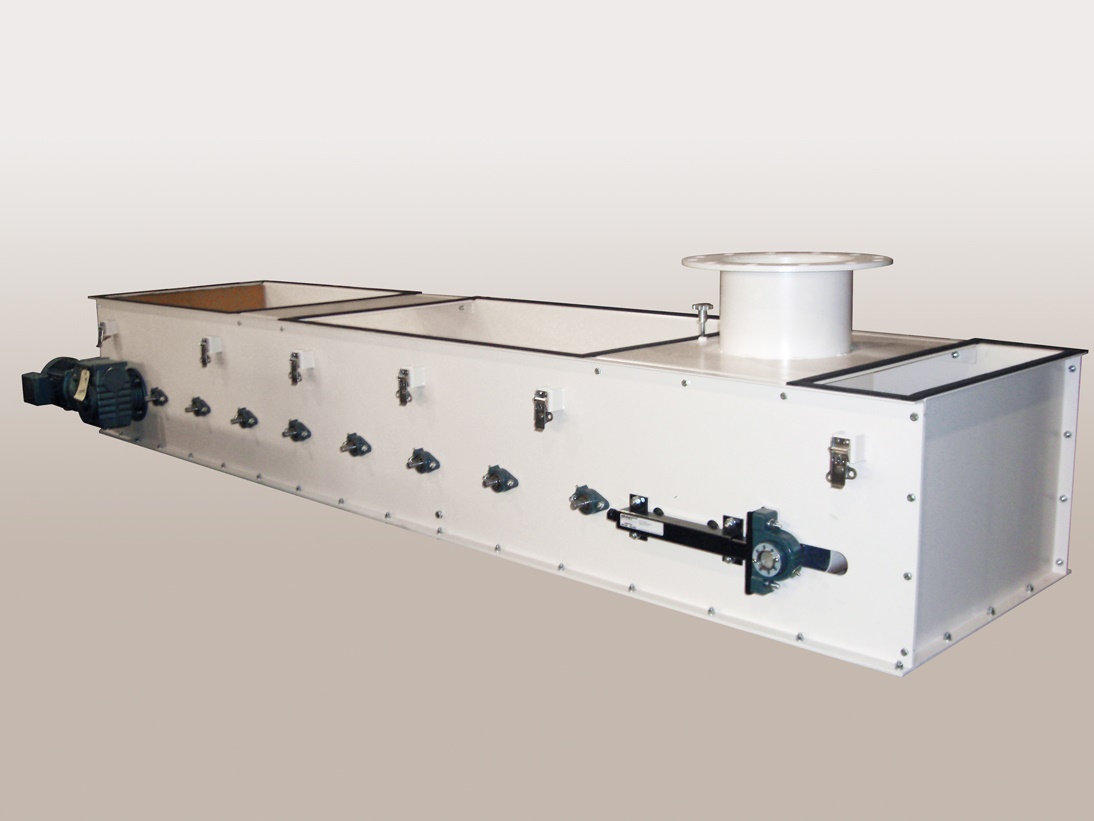

Metalfab Material Handling Systems, LLC, an industry-leading designer and manufacturer of dry solids processing equipment, integrated systems and subsystems, specialty fabrication and related services, has announced availability of their new APB Volumetric Belt Feeder.
Designed for highly accurate +/- 1 to 1 ?% metering of all types of powders, pellets, and agglomerates, the APB is exceptionally well suited for feeding of abrasive or friable materials and materials that have a tendency to smear or compress when being fed by a volumetric source feeder. It is also ideal for the high volume requirements of the chemical and food industries.
Available in 12, 24, 36 or 48 belt widths and 36, 72, 108, and 144 lengths (extended lengths available), the APB features a ruggedly built, sliding belt assembly and offers feed rates up to 5,800 cu. ft./hr. Standard belt material is neoprene and HYCAR®, Nordel® and Viton® are also available. Construction materials include carbon steel, carbon steel with special coatings, 304 or 316 stainless steel, and drive choices include constant speed motors and AC motors with variable frequency control.
Other standard features include bearings that are sealed and located outboard to prevent contamination; skirt boards and adjustable belt tensioners; belt scrapers to prevent material buildup on the belt surface and ensure complete discharge of material from the belt; and an AC Variable Frequency motor. Other motor options are available.
For more information, call toll free 1-800-764-2999; Fax: 973-764-0272, e-mail: sales@metalfabMHS.com
Metalfab Material Handling Systems, LLC, an industry-leading manufacturer of integrated dry solids processing equipment and systems, has announced availability of their redesigned bulk bag dump hopper. The new model features a smaller plant footprint with resized, more efficient bin vent filter, and provides a quick, easy, and virtually dust free way of dumping and filling a process system with material received in paper bags. The design incorporates a baffle and bin vent (which can be attached to a central dust collector), or optional, highly efficient bin vent filter over the dump area to maintain a dust free worker environment.
Metalfab Material Handling Systems, LLC, an industry-leading designer and manufacturer of dry solids processing equipment, integrated systems and subsystems, specialty fabrication and related services, has announced availability of a new brochure that provides an overview of the company’s extensive line of products and services available to the chemical processing, power generation, food, pet food, water treatment, foundry, pulp & paper, oil & gas, and plastics industries.
Metalfab Material Handling Systems, LLC, a leading manufacturer of integrated dry solids processing systems and equipment, offers a rugged yet affordable line of bin activators designed and engineered to deliver high performance, high product quality, long-term reliability, and low maintenance over life of ownership.
Available in a wide range of sizes from 2′- 16′ diameter, each bin activator incorporates a unique dual baffle design that delivers continuous flow of dry materials without plugging, jamming or bridging; an endless beaded flexible sleeve 7/16″ thick with 3-ply reinforcement that will not puncture, Continue reading
Metalfab Material Handling Systems, LLC, a leading manufacturer of dry solids processing equipment and integrated systems, is now offering a new white paper on design and use of powdered activated carbon (PAC) systems for control of mercury emissions from coal fired power plants.
The new paper provides detailed information on proper system design essential for storage, flow and metering of powdered activated carbon – which can present challenging flow problems in storage silos and equipment. Continue reading
A company installs five bulk bag unloaders and five volumetric screw feeders to automate its portable-hopper loading operation.
A company that produces welding and cutting products for national and international markets was experiencing problems loading materials from drums into a large portable hopper. Handling the drums created ergonomic and safety issues for the operator, took a lot of time and labor, and caused storage and disposal problems. To solve these problems, the company worked with a dry solids processing equipment supplier to automate the portablehopper loading operation. Continue reading
