PLBB Posibin™

Overview

The Metalfab PLBB Posibinâ„¢ is a low vibration transmission (LVT) bin activator that utilizes threaded rod isolators as hanger arms to reduce vibration.

Ideal for use with sensitive scaling systems and equipment, or for loss in weight gravimetric feeding, the PLBB Posibin consists of a smaller size static cylindrical bin fitted with the LVT bin activator. This low vibration motorized unit provides continuous movement of the product in the bin. A conical primary baffle, mounted within the LVT bin activator, moves horizontally with the unit to keep the contents in continuous motion to ensure uninterrupted flow of material on demand, and eliminate potential flow stoppages.

A secondary, adjustable baffle located at the final outlet, moves at a slightly different amplitude to prevent jamming and compaction in the outlet area.

Five PLBB Posibinâ„¢ models with capacities from 3 to 15 cu.ft. handle bulk densities from 20 to 30 cu.ft. Operation is almost completely noiseless.

Features/Benefits

• Diameters: Five (5) models 20" to 30"
• Capacity: 3 to 15 cu. ft.
• Bulk Density: To 50 lbs./cu. ft.

Operating Characteristics

• Provide positive, problem-free discharge of a wide range of difficult to handle materials in a variety of densities and particle sizes

Specifications

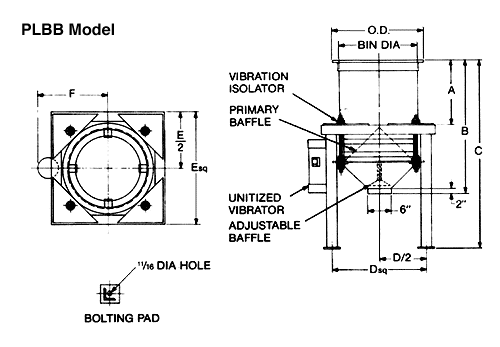

Dimensions

PLBB Model

Construction

• Carbon steel, 304 or 316 stainless steel, special coatings

Features/Benefits

• Uses low vibration transmission (LVT) bin activator. Ideal for use with sensitive scaling systems and equipment or for loss in weight gravimetric feeding

Available Options

• Other Metalfab upstream/downstream feeders, Convey-All Conveyors, bulk bag unloaders and hoppers
