CB1 Continuous Mixer/Blender


CB1 Continuous Mixer/Blender

Mix and Match. The Metalfab CB1 Continuously Mixes and Blends to Perfection.

Overview

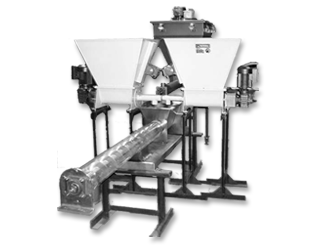

Metalfab's rugged CB1 Mixer/Blender is designed and engineered to continuously mix, blend, and convey two or more powders, pellets, flakes or granular materials dispensed from Metalfab MetaTech™ Volumetric or "Better-Weigh®" Gravimetric Feeders in proportional quantities. Available in models from 150 to 2,500 cu. ft./hr., the CB1 takes the materials and continuously mixes, blends, and conveys them at a rate equal to the total rates metered by the feeders.

Features/Benefits

  • Rugged, Flexible Design provides long life and versatility to accommodate multiple Volumetric or Gravimetric Feeders.
  • Easily Integrated with other Metalfab upstream and downstream equipment such as Better-Weigh® controllers, bin activators, bulk bag unloaders, Convey-All™ conveyors, Posibins™, and hoppers to form a complete materials handling system or subsystem
  • High Performance Trouble-Free Operation for unmatched dependability with continuous, nonstop productivity
  • Built to Last in a choice of high quality carbon steel, carbon steel with special coatings, 304 or 316 stainless steel, and other specified materials
  • Standard AC Constant Speed Drive with other drives available upon request
  • Optional Sanitary Design with stainless steel contacts allows flexibility to meet a wide range of applications

Operating Characteristics

  • Five models in conveyor lengths from 6 to 16 ft.
  • Feed rates to 2,500 cu.ft./hr.
  • Rugged, durable construction for continuous, long lasting operation

Specifications

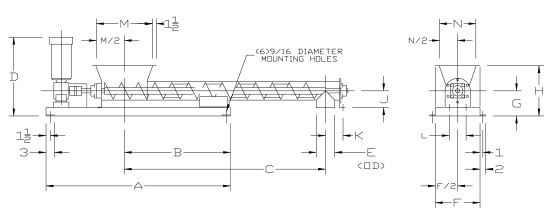

Dimensions

Model Feed Rate
(cu ft/hr)		 A B C D E F G H J K L M N HP
Min. Max.
CB1-6 150 66 38 72 110 28 1/4 6 5/8 16 9 18 6 6 1/4 6 20 13 1 1/2
CB1-8 300 84 50 84 120 32 1/4 8 5/8 20 9 20 6 7 3/4 10 26 17 3
CB1-10 700 96 58 98 128 39 5/8 11 3/8 22 10 21 7 9 12 30 19 5
CB1-12 1100 96 58 102 144 41 5/8 14 26 12 24 9 10 1/2 16 35 23 5
CB1-16 2500 120 74 118 144 44 18 30 14 27 11 13 1/4 20 39 27 7 1/2

Construction

  • Standard Units: All metal contact parts are carbon steel, carbon steel with special coatings, 304 or 316 stainless steel with a 2B mill finish.
  • Sanitary Units: All metal contact parts are 304 or 316 stainless steel with #4 polish on contact surfaces. Epoxy painted exterior carbon steel parts.
  • Motors/Driver: HP varies depending upon material and feed requirements. See dimension chart.

Available Options

  • Other Metalfab upstream/downstream bin activators , Convey-All™ Conveyors, bulk bag unloaders, Posibins™ and hoppers
