Overview

The Metalfab Live Bin consists of a round metal bin with a single baffle supported immediately above the outlet. The bin and its entire contents are vibrated horizontally in response to the forces of the unbalanced weights of the vibrator. The Live Bin comes with its own support frame and, like the Bin Activator and the Posibin, the Live Bin will insure the uninterrupted flow of material upon demand without bridging or rat holing. Metalfab Live Bins are ideally suited for both sanitary and pressure applications since there is no gap to close between a non-vibrated and a vibrated section. Sizes range from 3 cu. ft. to 100 cu. ft. capacities.

Features/Benefits

  • Diameters: Seven (7) models from 20" to 60"
  • Capacity: 3 to 100 cu. ft.
  • Bulk Density: to 100 lbs./cu. ft.
  • Construction Materials: Carbon steel, 304 or 316 stainless steel, pressure designs to 14.9 PSIG positive
  • Sanitary Construction Available

Operating Characteristics

  • Provides uninterrupted flow of material without bridging or rat holing upon demand

Specifications

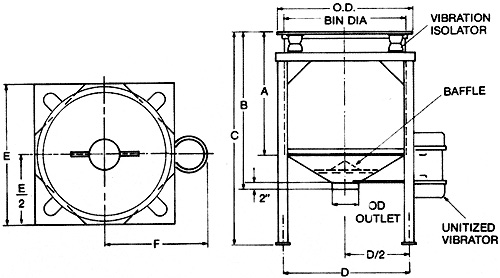

Dimensions

Live Bins 3 to 100 cu. ft. capacity
Model # Cap cu. ft. Bin Dia. O.D. A B C D E F O.D. Outlet HP
MLB20-3 3 20 23 17 1/2 23 1/2 40 23 1/2 26 1/2 22 6 1/2
MLB20-5 5 20 23 29 1/2 35 1/2 52 23 1/2 26 1/2 22 6 1/2
MLB24-8 8 24 28 29 36 52 1/2 28 31 1/2 24 1/2 6 1/2
MLB28-10 10 28 32 26 34 1/2 51 32 35 1/2 28 6 1/2
MLB30-15 15 30 34 34 1/2 43 1/2 60 34 37 1/2 29 6 1 1/2
MLB36-25 25 36 40 36 46 62 1/2 38 1/2 41 32 8 1 1/2
MLB48-50 50 48 52 48 61 1/2 78 50 1/2 53 38 8 1 1/2
MLB48-75 75 48 52 72 85 1/2 102 50 1/2 53 39 1/2 8 1 1/2
MLB60-100 100 60 64 60 77 93 1/2 62 1/2 65 1/2 45 1/2 8 1 1/2
Product Spec

Construction

  • Carbon steel, 304 or 316 stainless steel, pressure designs to 14.9 PSIG positive. Sanitary construction available

Available Options

  • Other Metalfab upstream/downstream feeders, Convey-All™ Conveyors, bulk bag unloaders and hoppers
