MTL Standard Screw Conveyor


MTL Screw Feeder/Conveyor

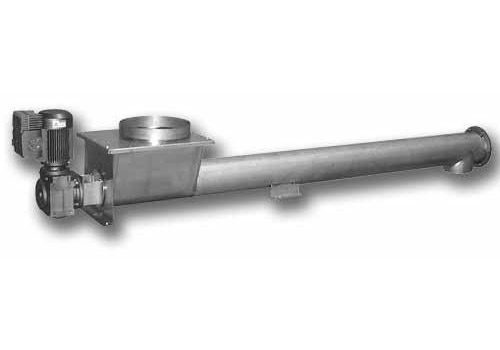

The MTL Screw Feeder/Conveyor is an upgrade of the DB2 Screw Feeder which incorporates the latest technology including a smaller footprint. The DB2 is still available upon request.

Overview

Metalfab's highly accurate, dependable Model MTL Volumetric Screw Feeder/Conveyor has only five moving parts - drive, coupling, two bearings, and a screw. The combination of a large inlet and a U-shaped trough help ensure complete filling of screw flights and provides feed accuracies of ±1 to 1-1/2%. When a Metalfab Posibin™ or Bin Activator is used to supply the feeder even greater accuracies may be obtained.

A Bin Activator is recommended when feed rates are more than 100 cu. ft./hr. or non-free flowing materials need to be metered. Flight-type screws with through shafts are standard. Oversize bearings which are sealed and provided with grease fittings support the shaft. Operating noise levels are within OSHA requirements. All moving parts are guarded and the screw section is totally enclosed.

Features/Benefits

  • Accuracy: ±1 to 1-½% (one minute samples)
  • Screw Sizes: 6" to 20" diameter; agitator/conditioning screws 8" and 10"
  • Inlet to Outlet: 3' to 12'
  • Feed Rates: 550 -18,000 cu. ft./hr.
  • Motor: AC Variable Frequency drive is standard. Options available

Operating Characteristics

  • Provides precise metering of dry materials in the chemical, food, plastics, pharmaceutical, and foundry industries
  • Can also be used as a short distance conveyor with centerline of inlet to outlet dimensions of 35" to 144" depending on screw size

Specifications

Dimensions

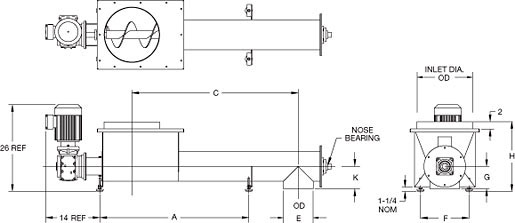

Product Spec Image
Model Feed Rate Max
(cu ft/hr)
 A C E
(min) (max)
MTL-6 550 40 35 110 6 5/8
MTL-8 1,100 42 48 120 8 5/8
MTL-10 2,200 48 50 120 11 3/8
MTL-12 3,800 62 54 144 14
MTL-16 9,000 72 70 144 18
MTL-20 18,000 84 90 144 22
Model F G H K HP
MTL-6 13 9 20 5 1/2 1 1/2
MTL-8 16 9 21 6 1/2 2-3
MTL-10 21 10 21 8 3-5
MTL-12 24 11 22 9 3-5
MTL-16 26 13 26 11 3-5
MTL-20 30 15 28 13 5-7

Construction

  • Carbon steel, carbon steel with special coatings, 304 or 316 stainless steel
